This tutorial works with the following technologies and resources

JavaServer Faces Components/ Java EE Platform	1.2 with Java EE 5* 1.1 with J2EE 1.4
Travel Database	Not required
BluePrints Ajax Component Library	Not required

* As of the date this tutorial was published, only the Sun Java System Application Server supported Java EE 5.

This tutorial has been tailored for use with the Sun Java Application Server PE 9.0 Update Release 1 and with Tomcat 5.5.17. If you are using a different server, consult the Release Notes and FAQs for known problems and workarounds. For detailed information about the supported servers and Java EE platform, see the Release Notes.

About the File Upload Component

The File Upload component enables users of your web application to locate a file on their system and upload that file to the server. This component is useful for collecting text files, image files, and other data. The contents of the uploaded file are stored together with some information about the file, including the file name, size, and MIME type (such as text/plain or image/jpeg).

The server holds the uploaded file in memory unless it exceeds 4096 bytes, in which case the server holds the file contents in a temporary file. You can change this threshold by modifying the sizeThreshold parameter for the UploadFilter filter entry in the web application's web.xml file. For more information on modifying the web.xml file, see the last section in this tutorial, Doing More: Modifying the Maximum File Upload Size.

In cases where you want to retain the uploaded file, you have three choices:

• Write the file to a location of your choice, as shown in this tutorial.
• Create an UploadedFile property in a managed bean and set it to the component's value before you exit the page (as in the button's action method).
• Save the file to a database.

By default, the File Upload component can handle files up to one megabyte in size. You can change the maximum file size by modifying the maxSize parameter for the UploadFilter filter entry in the application's web.xml file, as described in the last section in this tutorial, Doing More: Modifying the Maximum File Upload Size.

Creating a Page That Includes a File Upload Component

1. Create a new Visual Web Application project and name it FileUploadExample.

   Figure 1 shows the page that you will create in the steps that follow:

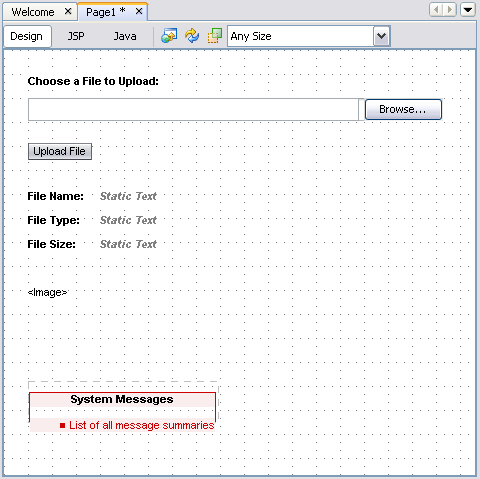

   Figure 1: File Upload Page Design

2. From the Basic section of the Palette, drop a Label component on the page, type Choose a File to Upload: and press Enter.
3. Drag a File Upload component onto the page and drop it underneath the Label component.
4. Drag a Button component onto the page, type Upload File, and press Enter. In the Properties window, set the Button's id property to uploadFileButton.
5. Drag a Label component onto the page and set the text to File Name:
6. Place a Static Text component to the right of the Label. In the Properties window, set the Static Text's id property to fileNameStaticText.
7. Drag another Label onto the page. Set the text of the Label to File Type:
8. Place a Static Text component to the right of the new Label. Set the id of the Static Text to fileTypeStaticText.
9. Drag another Label and Static Text pair onto the page. Set the text of the Label to File Size: and the id of the Static Text to fileSizeStaticText.
10. Place an Image component below the Static Text components.
11. Place a Message Group component below the Image component.

Adding Code to Handle Image Uploads

1. Double-click the Upload File button to open the Java Editor and add the button's event handler, uploadFileButton_action, to the page bean.

   Before adding code to this method, you define variables for storing the image file and add code to the init() and prerender() methods.

2. Scroll up to the init() method and add the following two variables before the method.

   Code Sample 1: Variables

   private String realImageFilePath; private static final String IMAGE_URL = "/resources/image-file";


   The variable realImageFilePath is the actual path and filename of the image file on the server. The IMAGE_URL variable is the logical path of the image file in the running web application.

3. Add the following lines of bold (shown in bold) at the end of the init method, but note that the code contains a Class Not Found error. You add import statements to fix these errors in step 6. After inserting the code, you can press Ctrl-Shift-F to reformat the code.

   Code Sample 2: init Method

   public void init() { super.init(); // Perform application initialization that must complete // *before* managed components are initialized // TODO - add your own initialiation code here // Managed Component Initialization // Perform application initialization that must complete // *after* managed components are initialized // TODO - add your own initialization code here ServletContext theApplicationsServletContext = (ServletContext) this.getExternalContext().getContext(); this.realImageFilePath = theApplicationsServletContext.getRealPath(IMAGE_URL); }


   This code converts IMAGE_URL into the real image file path so that the file can be written to the correct directory on the server.

4. Scroll to the prerender method and add the following code:

   Code Sample 3: prerender Method

   public void prerender() { String uploadedFileName = (String) this.fileNameStaticText.getValue(); if ( uploadedFileName != null ) { image1.setUrl(IMAGE_URL); } }


   If there is an image file to display, this code binds the file to the Image component.

5. Add the following code to the uploadFileButton_action() method

   Code Sample 4: Code to Upload an Image File

   public String uploadFileButton_action() { UploadedFile uploadedFile = fileUpload1.getUploadedFile(); String uploadedFileName = uploadedFile.getOriginalName(); // Some browsers return complete path name, some don't // Make sure we only have the file name // First, try forward slash int index = uploadedFileName.lastIndexOf('/'); String justFileName; if ( index >= 0) { justFileName = uploadedFileName.substring( index + 1 ); } else { // Try backslash index = uploadedFileName.lastIndexOf('\\'); if (index >= 0) { justFileName = uploadedFileName.substring( index + 1 ); } else { // No forward or back slashes justFileName = uploadedFileName; } } this.fileNameStaticText.setValue(justFileName); Long uploadedFileSize = new Long(uploadedFile.getSize()); this.fileSizeStaticText.setValue(uploadedFileSize); String uploadedFileType = uploadedFile.getContentType(); this.fileTypeStaticText.setValue(uploadedFileType); if ( uploadedFileType.equals("image/jpeg") || uploadedFileType.equals("image/pjpeg") || uploadedFileType.equals("image/gif") || uploadedFileType.equals("image/png") || uploadedFileType.equals("image/x-png")) { try { File file = new File(this.realImageFilePath); uploadedFile.write(file); } catch (Exception ex) { error("Cannot upload file: " + justFileName); } } else { error("You must upload a JPEG, PJPEG, GIF, PNG, or X-PNG file."); new File(this.realImageFilePath).delete(); } return null; }


   For each file, the program extracts the file name, size, and type from the UploadedFile object and binds them to the Static Text components. The program makes a key decision with all uploads: If the file is a JPEG, PJPEG, GIF, PNG, or X-PNG file, the program saves the uploaded file to the realImageFilePath variable. If the file is not a valid image file or if there are other problems uploading the file, the program deletes the image from the server and displays an error message.

6. Right-click in the Java Editor and choose Fix Imports. In the Fix Import dialog box, ensure that java.io.File appears in the Fully Qualified Name field and click OK.

   This action fixes the errors in the code.

Testing the Application

1. Run the application.

2. Click Browse to navigate through your local drives and select a file to upload. Then click the Upload File button.

   The following figure shows the application with an uploaded JPEG file. The image is stored in project-directory\FileUploadExample\build\web\resources.

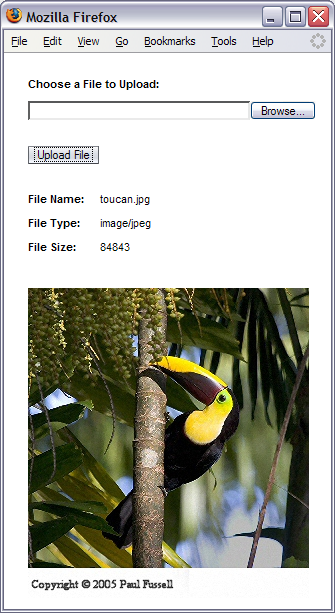

   Figure 2: Application With Uploaded Image

3. Enter a text file in the File Upload component and click the Upload File button. Verify that the error message displays.

   Note: The rendering of the File Upload component can differ depending on the web browser. Be sure to test this component in the web browsers that you expect your users to use.

Doing More #1: Uploading a Text File

1. Create a new Visual Web Application project.
2. Drag a File Upload component onto the page.
3. Add a Button component, a Text Area component, and a Message Group component.

4. Double-click the Button component and add the following action code to the button1_action() method:

   Code Sample 5: Code to Upload a Text File

   public String button1_action() { UploadedFile uploadedFile = (UploadedFile) fileUpload1.getUploadedFile(); info("Uploaded file originally named '" + uploadedFile.getOriginalName() + "' of size '" + uploadedFile.getSize() + "'"); textArea1.setText(uploadedFile.getAsString()); return null; }

5. Press Alt-Shift-F to fix imports and automatically add the UploadedFile import statement.

6. Run the application. The following figure shows a sample page.

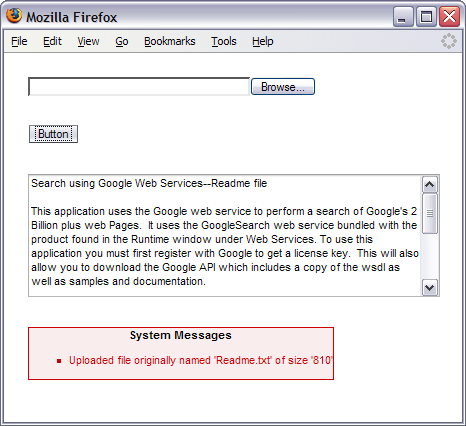

   Figure 3: Text File Upload

Doing More #2: Modifying the Maximum File Upload Size

1. Open the Files window and expand project-name > web > WEB-INF.
2. Right-click the web-xml node and choose Edit.
3. In the XML editor, click the Filters button.
4. Select the maxSize parameter for the UploadFilter, and click the Edit button.

5. In the dialog box, set Param Value to the desired value and click OK.

   Note: For security reasons, do not set the maxSize parameter to a negative value, which indicates that there is no file size limit.
6. Choose File > Save to save your changes.

org.apache.commons.fileupload.FileUploadBase$SizeLimitExceededException

No file was uploaded

No file was uploaded. The specified file exceeds the maximum allowable size of 1000000 Mb

where 1000000 Mb is the value of maxSize.

Doing More #3: Saving the Uploaded Files to Other Locations

This tutorial shows how to upload a file to the web application's /resources folder. What if you want to save the uploaded files elsewhere? Here are some alternatives.

A Different Folder in the Web Application

You can put the images in any directory in the web application (that is, any directory under the web application's web directory). For example, you can create an upload/images subfolder under web and use the following code to store the images there:

String realPath = theApplicationsServletContext.getRealPath("/upload/images");
File file = new File(realPath + File.separatorChar + justFileName);

Be careful when putting the uploaded files in the web application because anyone can access the files by URL.

A Known Directory on the Server

To store the images somewhere else on the server, you can use code such as the following:

File file = new File("C:/upload/images" + File.separatorChar + justFileName);
uploadedFile.write(file);

If you plan to deploy the application to different servers, you might use code like the following to ensure that the upload directory exists:

File dir = new File("C:/upload/images");
if (! dir.exists()) dir.mkdirs();
File file = new File(dir.getCanonicalPath() + File.separatorChar + justFileName);
uploadedFile.write(file);

For more information about the File class.

An As-Yet Unknown Directory

1. In the Files window, expand the web node and then expand WEB-INF. Double-click web.xml to open it.
2. Click the General button and expand Context Parameters, and click the Add button.

3. Set the following values, and then click OK.

   Param Name: uploadDirectory (or whatever you want to name it)
   Param Value: C:/upload/images (or whatever your path is)
4. Close and save the web.xml file.

5. Use the following code:

   Code Sample 9: Code to Upload a File to an As-Yet Unknown Directory

   String uploadDirectory = getExternalContext().getInitParameter ("uploadDirectory"); File file = new File(uploadDirectory + File.separatorChar + justFileName); uploadedFile.write(file);

Known Issues

• If you run the File Upload tutorial using Internet Explorer 7, the first load of the image works properly. The second load of the image updates the file name, file type, and file size, but does not update the image. If you reload the browser, the image displays correctly.
• The filename of the image must contain ISO-8859-1 characters.
